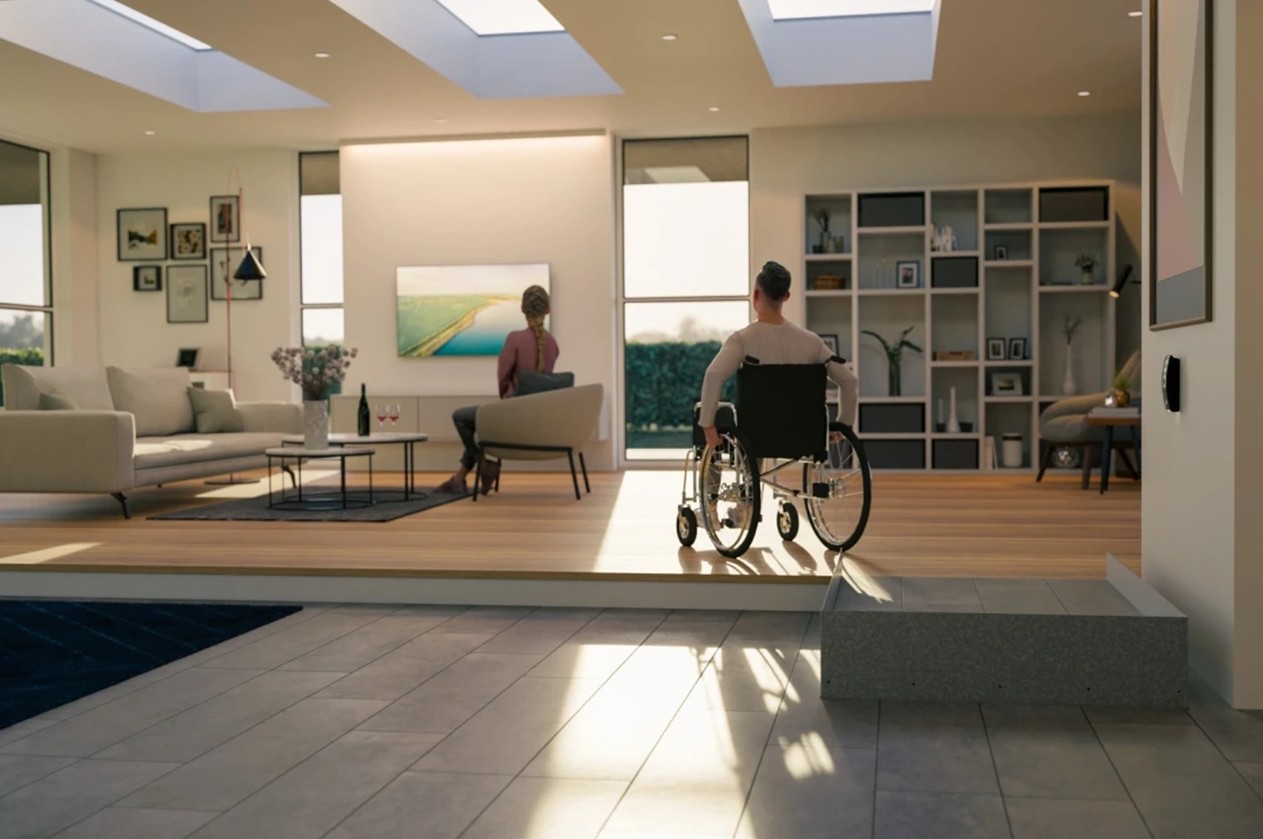

The HDN Hidden Step Lift is a concealed platform lift designed to provide wheelchair access across level changes within commercial, public and residential environments.

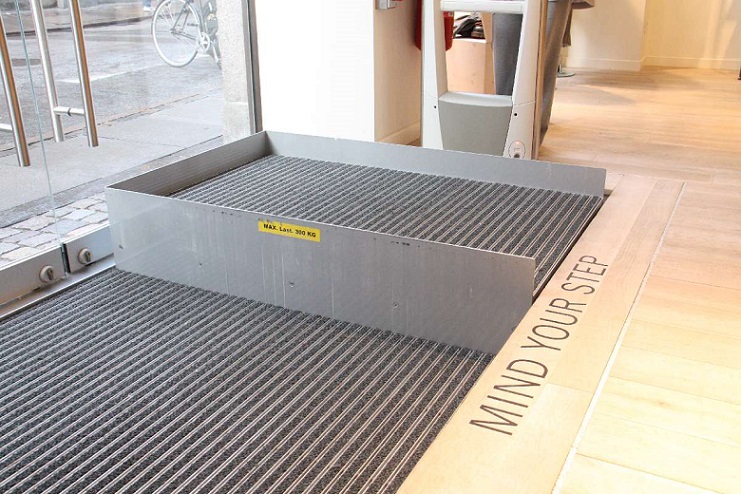

The lift platform remains hidden beneath the finished floor surface when not in use, helping preserve open circulation areas and minimise visual impact within entrances, reception spaces, retail premises and public buildings.
Suitable for both indoor and outdoor installation, the HDN system provides a discreet accessibility solution where space restrictions, planning considerations or existing building layouts may limit the use of traditional ramps or platform lifts.
The HDN system is commonly installed within existing buildings where accessibility improvements are required without significant structural alteration or permanent obstruction of access routes.

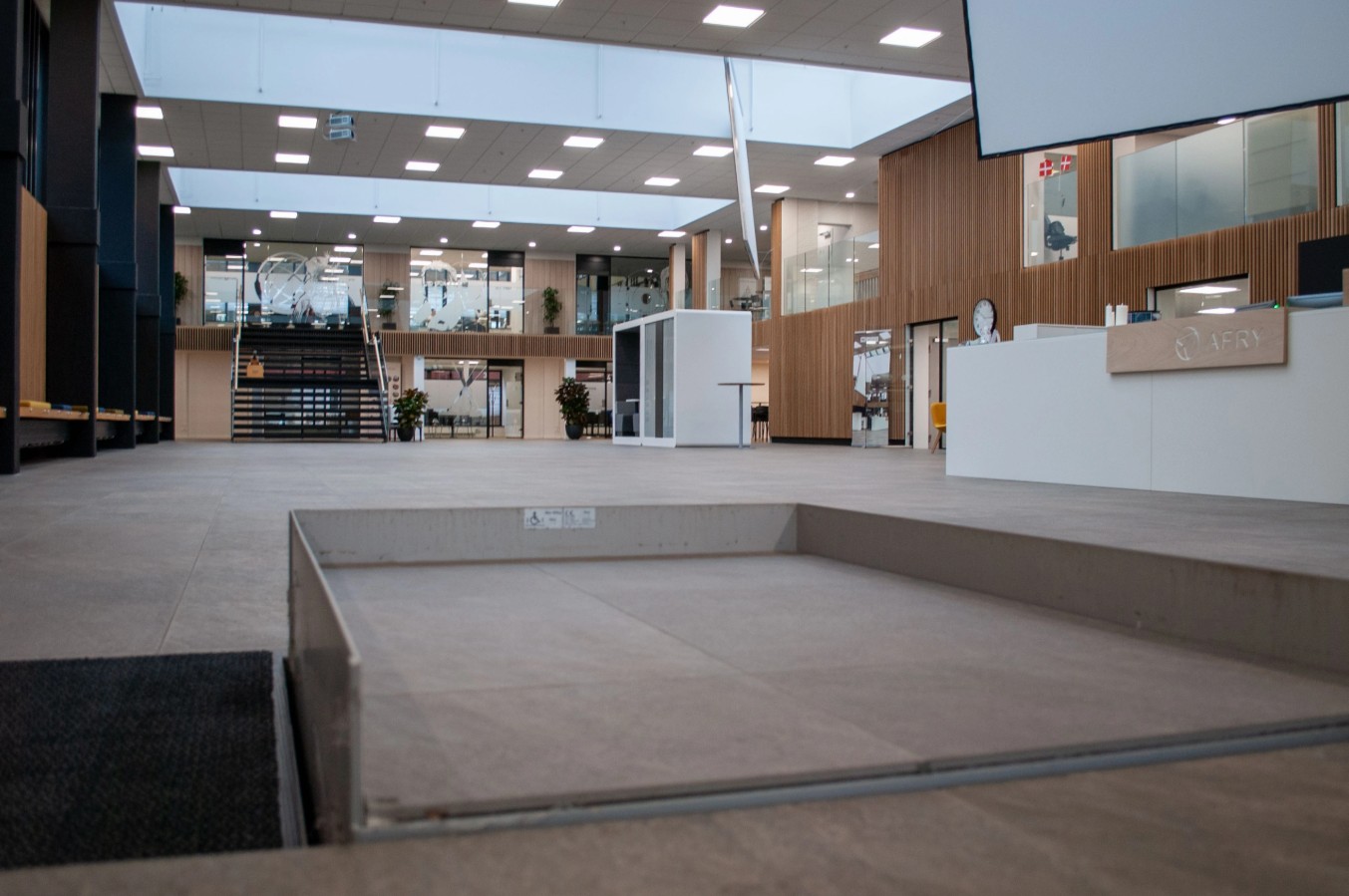

Its concealed design allows the surrounding floor finish to continue across the lift platform, helping maintain the appearance and functionality of entrances, reception areas and public access points.
The lift is particularly suited to offices, retail premises, hospitality environments and public buildings where accessibility requirements need to be balanced alongside available space and day-to-day building operation.
The HDN Hidden Step Lift requires significantly less space than a traditional access ramp for small level changes, making it suitable for projects where floor space is limited or circulation areas need to remain clear.

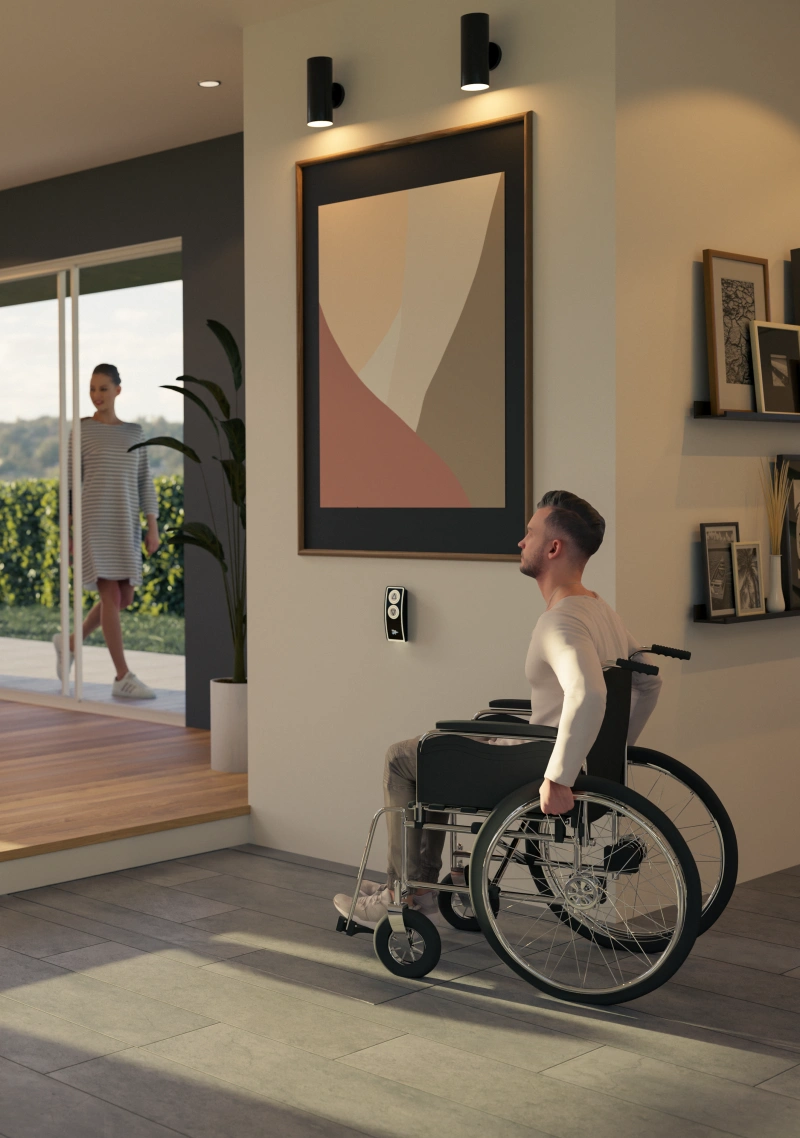

The system can be configured for different platform sizes, call station positions and installation layouts depending on building requirements and user access needs.
| HDN 900 | HDN 1000 | HDN 1100 | |
| This is the smallest of the 3 platforms. This platform is suitable in places with limited space available an no need for the wheelchair to change direction on the platform. | This is the middle size of platforms. This platform requires a little more space but it also provides better possibility to manoeuvring the wheelchair on the platform. | This is the widest of the 3 HDN models, thus it goes without saying that here’s enough space for a big wheelchair to turn around. | |
| Pit short side | 935 mm | 1035mm | 1135mm |
| Lifting capacity | 400 kg / 2 pers. | 400 kg / 2 pers. | 400 kg / 2 pers. |
| Lifting speed | 20 mm / s | 20 mm / s | 20 mm / s |
| Weight | 110 kg | 110 kg | 110 kg |
| Noise | < 70 dB | < 70 dB | < 70 dB |
| Lifting height | 0-500 mm | 0-500 mm | 0-500 mm |
| Pit depth | 350mm | 350mm | 350mm |
| Pit long side | 1430mm | 1430mm | 1430mm |
| Duty cycle | 2 min. / 18 min. | 2 min. / 18 min. | 2 min. / 18 min. |

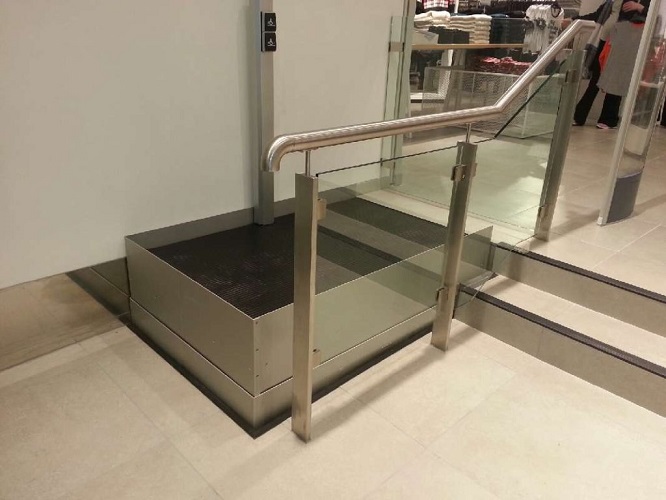

The HDN platform lift includes a range of integrated safety and operational features designed to support safe day-to-day accessibility use within commercial and public environments.
Features include:
The lift mechanism and drive components remain fully enclosed beneath the platform structure, helping minimise exposure to moving parts during operation.

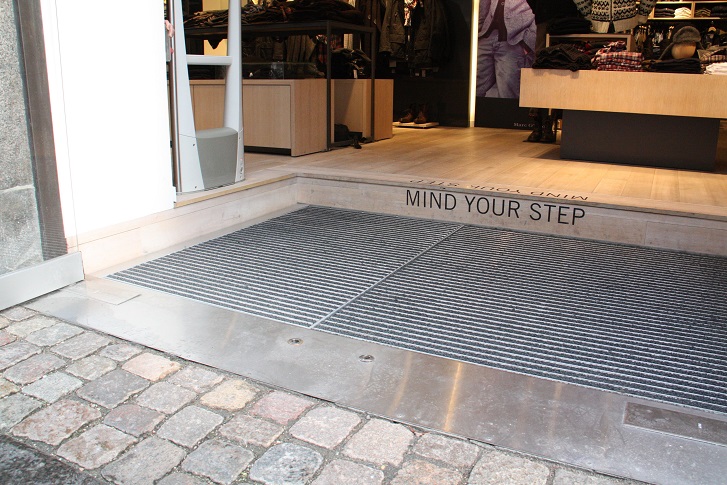

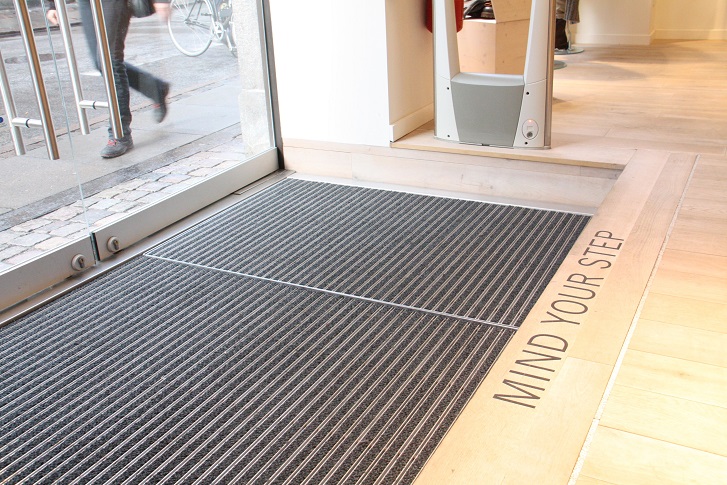

The platform remains hidden beneath the finished floor surface when not in use, helping preserve the surrounding building layout and visual appearance.
The compact concealed lift design allows accessibility improvements within entrances and circulation areas where ramps or larger lift systems may not be practical.
The HDN system can be installed within both internal and external environments depending on project requirements and access conditions.
The lift provides wheelchair access across small level changes within offices, retail premises, hospitality environments and public buildings.
